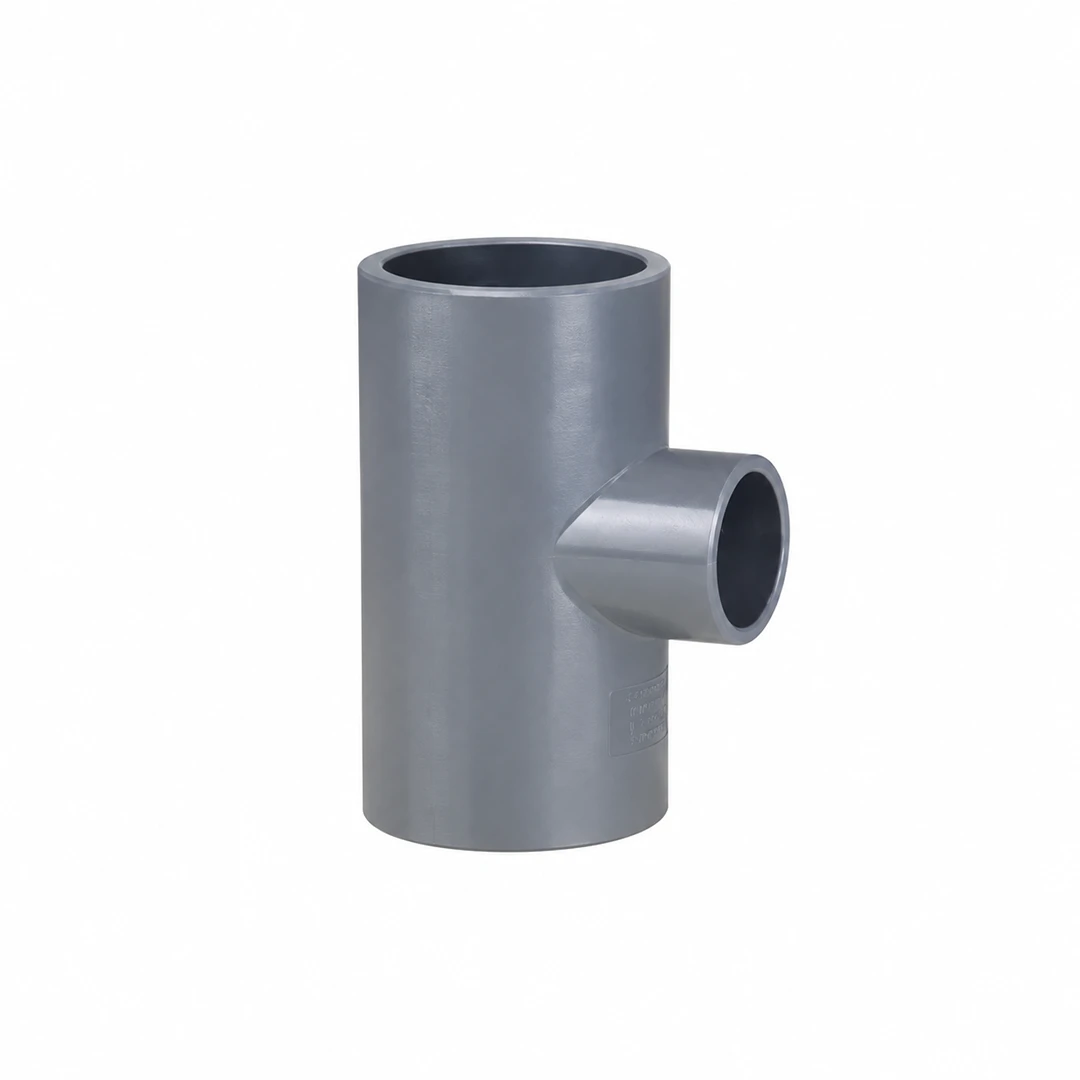

UH-PVC Yapıştırma Muflu İnegal Te

Stok kodu: Yok

Mağazadan teslim al

Siparişinizi mesai saatleri içinde mağazamızdan teslim alabilirsiniz.

Ücretsiz

Kargo ile teslimat

Siparişiniz, anlaşmalı kargo firmalarıyla adresinize gönderilir.

1-3 Gün

Ödeme adımında hesaplanır

DHL Courier delivery

DHL courier will deliver to the specified address

1-2 Days

From $40

Farklı çaplı PVC hatları T bağlantısında buluşturmak için inegal te. Çok sayıda ölçü kombinasyonu arasından iki bağlantı çapını birlikte seçebilirsiniz.

Fiyat aralığı: 50,42₺ - 94.889,94₺

Seçenek

Temizle

WhatsApp ile Sipariş Ver Ürün adı mesajınıza otomatik eklenir.

Karşılaştır

İstek listesine ekle

Ürün Bilgileri

UH-PVC Yapıştırma Muflu İnegal Te, boru tesisatında farklı çaplar arasında T bağlantısı kurulacağı zaman kullanılan Pimtaş ek parçasıdır. Eş çaplı teye göre seçimde ikinci bir çap daha devreye girer. Bu nedenle ana hattın ve bağlanacak kolun ölçüsü, teknik çizimdeki d1 ve d2 konumlarıyla birlikte değerlendirilmelidir.

İnegal te, hat çaplarının aynı olmadığı bağlantılarda uygun kombinasyonu seçmenize imkân verir. Katalogda küçük tesisat çaplarından büyük ana hat ölçülerine kadar geniş bir seçenek listesi bulunur. Benzer görünen ölçü çiftlerinin ürün kodları farklıdır; siparişte çapların sırasını ve kodu beraber kontrol etmek faydalıdır.

UH-PVC Yapıştırma Muflu İnegal Te çeşitlerinde PN10 ve PN16 seçenekleri vardır. Bazı varyantlar katalogda redüksiyon ile düşürülmüş olarak işaretlenir. Teknik özellikler bölümündeki varyant bilgisi, bağlantı ölçüleri ve basınç sınıfını aynı satır üzerinden karşılaştırmanıza yardımcı olur.

Sık Sorulan Sorular

UH-PVC Yapıştırma Muflu İnegal Te eş çaplı teden nasıl ayrılır?

İnegal te farklı bağlantı çaplarını bir araya getirir. Standart eş çaplı te ise aynı ölçüdeki boruların T bağlantısı için seçilir.

Ölçü çiftindeki sıra önemli mi?

Evet. d1 ve d2 teknik çizimde farklı bağlantıları gösterir. İki sayıyı yalnızca büyük ve küçük çap olarak sıralamak yerine çizimdeki konumlarına göre kontrol edin.

Bütün inegal te seçenekleri aynı basınçta mı?

Hayır. Bu tabloda PN16 ve PN10 varyantlar birlikte bulunur. Hangi basınç sınıfının geçerli olduğu seçilen ürün koduna göre kontrol edilmelidir.

Yıldızlı ölçüler ne anlama gelir?

Katalog yıldızlı satırları redüksiyon ile düşürülmüş olarak açıklar. İlgili not, o varyantın ürün özellikleriyle birlikte değerlendirilmelidir.

PVC redüksiyon ile aynı parça mı?

Hayır. Düz redüksiyon iki bağlantı arasında çap geçişi yapar; inegal te üç bağlantılı bir T gövdeye sahiptir.

Özellikler

Seçenek	32 × 20 mm, 32 × 25 mm, 32 × 50 mm, 40 × 20 mm, 40 × 25 mm, 40 × 32 mm, 50 × 20 mm, 50 × 25 mm, 50 × 32 mm, 50 × 40 mm, 63 × 25 mm, 63 × 32 mm, 63 × 40 mm, 63 × 50 mm, 75 × 32 mm, 75 × 40 mm, 75 × 50 mm, 75 × 63 mm, 90 × 32 mm, 90 × 40 mm, 90 × 50 mm, 90 × 63 mm, 90 × 75 mm, 110 × 32 mm, 110 × 40 mm, 110 × 50 mm, 110 × 63 mm, 110 × 75 mm, 110 × 90 mm, 125 × 63 mm, 125 × 75 mm, 125 × 90 mm, 125 × 110 mm, 140 × 63 mm, 140 × 75 mm, 140 × 90 mm, 140 × 110 mm, 160 × 63 mm, 160 × 75 mm, 160 × 90 mm, 160 × 110 mm, 160 × 125 mm, 200 × 75 mm, 200 × 90 mm, 200 × 110 mm, 200 × 125 mm, 200 × 140 mm, 200 × 160 mm, 225 × 110 mm, 225 × 125 mm, 225 × 140 mm, 225 × 160 mm, 225 × 200 mm, 250 × 110 mm, 250 × 140 mm, 250 × 160 mm, 250 × 200 mm, 250 × 225 mm, 280 × 110 mm, 280 × 140 mm, 280 × 160 mm, 280 × 200 mm, 280 × 225 mm, 280 × 250 mm, 315 × 110 mm, 315 × 160 mm, 315 × 225 mm, 315 × 250 mm, 315 × 280 mm, 355 × 280 mm, 355 × 315 mm, 400 × 280 mm, 400 × 315 mm, 400 × 355 mm
Marka	Pimtaş
Malzeme	UH-PVC
Ürün kodu	32 × 20 mm: 508 00 032020 2, 32 × 25 mm: 508 00 032025 2, 32 × 50 mm: 508 00 032050 2, 40 × 20 mm: 508 00 040020 2, 40 × 25 mm: 508 00 040025 2, 40 × 32 mm: 508 00 040032 2, 50 × 20 mm: 508 00 050020 2, 50 × 25 mm: 508 00 050025 2, 50 × 32 mm: 508 00 050032 2, 50 × 40 mm: 508 00 050040 2, 63 × 25 mm: 508 00 063025 2, 63 × 32 mm: 508 00 063032 2, 63 × 40 mm: 508 00 063040 2, 63 × 50 mm: 508 00 063050 2, 75 × 32 mm: 508 00 075032 2, 75 × 40 mm: 508 00 075040 2, 75 × 50 mm: 508 00 075050 2, 75 × 63 mm: 508 00 075063 2, 90 × 32 mm: 508 00 090032 2, 90 × 40 mm: 508 00 090040 2, 90 × 50 mm: 508 00 090050 2, 90 × 63 mm: 508 00 090063 2, 90 × 75 mm: 508 00 090075 2, 110 × 32 mm: 508 00 110032 2, 110 × 40 mm: 508 00 110040 2, 110 × 50 mm: 508 00 110050 2, 110 × 63 mm: 508 00 110063 2, 110 × 75 mm: 508 00 110075 2, 110 × 90 mm: 508 00 110090 2, 125 × 63 mm: 508 00 125063 2, 125 × 75 mm: 508 00 125075 2, 125 × 90 mm: 508 00 125090 2, 125 × 110 mm: 508 00 125110 2, 140 × 63 mm: 508 00 140063 2, 140 × 75 mm: 508 00 140075 2, 140 × 90 mm: 508 00 140090 2, 140 × 110 mm: 508 00 140110 2, 160 × 63 mm: 508 00 160063 2, 160 × 75 mm: 508 00 160075 2, 160 × 90 mm: 508 00 160090 2, 160 × 110 mm: 508 00 160110 2, 160 × 125 mm: 508 00 160125 2, 200 × 75 mm: 508 00 200075 2, 200 × 90 mm: 508 00 200090 2, 200 × 110 mm: 508 00 200110 2, 200 × 125 mm: 508 00 200125 2, 200 × 140 mm: 508 00 200140 2, 200 × 160 mm: 508 00 200160 2, 225 × 110 mm: 508 00 225110 2, 225 × 125 mm: 508 00 225125 2, 225 × 140 mm: 508 00 225140 2, 225 × 160 mm: 508 00 225160 2, 225 × 200 mm: 508 00 225200 2, 250 × 110 mm: 508 00 250110 2, 250 × 140 mm: 508 00 250140 2, 250 × 160 mm: 508 00 250160 2, 250 × 200 mm: 508 00 250200 2, 250 × 225 mm: 508 00 250225 2, 280 × 110 mm: 508 00 280110 5, 280 × 140 mm: 508 00 280140 5, 280 × 160 mm: 508 00 280160 2, 280 × 200 mm: 508 00 280200 5, 280 × 225 mm: 508 00 280225 5, 280 × 250 mm: 508 00 280250 5, 315 × 110 mm: 508 00 315110 5, 315 × 160 mm: 508 00 315160 2, 315 × 225 mm: 508 00 315225 2, 315 × 250 mm: 508 00 315250 2, 315 × 280 mm: 508 00 315280 2, 355 × 280 mm: 508 00 355280 5, 355 × 315 mm: 508 00 355315 5, 400 × 280 mm: 508 00 400280 5, 400 × 315 mm: 508 00 400315 5, 400 × 355 mm: 508 00 400355 5
d1	32 × 20 mm: 32 mm, 32 × 25 mm: 32 mm, 32 × 50 mm: 32 mm, 40 × 20 mm: 40 mm, 40 × 25 mm: 40 mm, 40 × 32 mm: 40 mm, 50 × 20 mm: 50 mm, 50 × 25 mm: 50 mm, 50 × 32 mm: 50 mm, 50 × 40 mm: 50 mm, 63 × 25 mm: 63 mm, 63 × 32 mm: 63 mm, 63 × 40 mm: 63 mm, 63 × 50 mm: 63 mm, 75 × 32 mm: 75 mm, 75 × 40 mm: 75 mm, 75 × 50 mm: 75 mm, 75 × 63 mm: 75 mm, 90 × 32 mm: 90 mm, 90 × 40 mm: 90 mm, 90 × 50 mm: 90 mm, 90 × 63 mm: 90 mm, 90 × 75 mm: 90 mm, 110 × 32 mm: 110 mm, 110 × 40 mm: 110 mm, 110 × 50 mm: 110 mm, 110 × 63 mm: 110 mm, 110 × 75 mm: 110 mm, 110 × 90 mm: 110 mm, 125 × 63 mm: 125 mm, 125 × 75 mm: 125 mm, 125 × 90 mm: 125 mm, 125 × 110 mm: 125 mm, 140 × 63 mm: 140 mm, 140 × 75 mm: 140 mm, 140 × 90 mm: 140 mm, 140 × 110 mm: 140 mm, 160 × 63 mm: 160 mm, 160 × 75 mm: 160 mm, 160 × 90 mm: 160 mm, 160 × 110 mm: 160 mm, 160 × 125 mm: 160 mm, 200 × 75 mm: 200 mm, 200 × 90 mm: 200 mm, 200 × 110 mm: 200 mm, 200 × 125 mm: 200 mm, 200 × 140 mm: 200 mm, 200 × 160 mm: 200 mm, 225 × 110 mm: 225 mm, 225 × 125 mm: 225 mm, 225 × 140 mm: 225 mm, 225 × 160 mm: 225 mm, 225 × 200 mm: 225 mm, 250 × 110 mm: 250 mm, 250 × 140 mm: 250 mm, 250 × 160 mm: 250 mm, 250 × 200 mm: 250 mm, 250 × 225 mm: 250 mm, 280 × 110 mm: 280 mm, 280 × 140 mm: 280 mm, 280 × 160 mm: 280 mm, 280 × 200 mm: 280 mm, 280 × 225 mm: 280 mm, 280 × 250 mm: 280 mm, 315 × 110 mm: 315 mm, 315 × 160 mm: 315 mm, 315 × 225 mm: 315 mm, 315 × 250 mm: 315 mm, 315 × 280 mm: 315 mm, 355 × 280 mm: 355 mm, 355 × 315 mm: 355 mm, 400 × 280 mm: 400 mm, 400 × 315 mm: 400 mm, 400 × 355 mm: 400 mm
d2	32 × 20 mm: 20 mm, 32 × 25 mm: 25 mm, 32 × 50 mm: 50 mm, 40 × 20 mm: 20 mm, 40 × 25 mm: 25 mm, 40 × 32 mm: 32 mm, 50 × 20 mm: 20 mm, 50 × 25 mm: 25 mm, 50 × 32 mm: 32 mm, 50 × 40 mm: 40 mm, 63 × 25 mm: 25 mm, 63 × 32 mm: 32 mm, 63 × 40 mm: 40 mm, 63 × 50 mm: 50 mm, 75 × 32 mm: 32 mm, 75 × 40 mm: 40 mm, 75 × 50 mm: 50 mm, 75 × 63 mm: 63 mm, 90 × 32 mm: 32 mm, 90 × 40 mm: 40 mm, 90 × 50 mm: 50 mm, 90 × 63 mm: 63 mm, 90 × 75 mm: 75 mm, 110 × 32 mm: 32 mm, 110 × 40 mm: 40 mm, 110 × 50 mm: 50 mm, 110 × 63 mm: 63 mm, 110 × 75 mm: 75 mm, 110 × 90 mm: 90 mm, 125 × 63 mm: 63 mm, 125 × 75 mm: 75 mm, 125 × 90 mm: 90 mm, 125 × 110 mm: 110 mm, 140 × 63 mm: 63 mm, 140 × 75 mm: 75 mm, 140 × 90 mm: 90 mm, 140 × 110 mm: 110 mm, 160 × 63 mm: 63 mm, 160 × 75 mm: 75 mm, 160 × 90 mm: 90 mm, 160 × 110 mm: 110 mm, 160 × 125 mm: 125 mm, 200 × 75 mm: 75 mm, 200 × 90 mm: 90 mm, 200 × 110 mm: 110 mm, 200 × 125 mm: 125 mm, 200 × 140 mm: 140 mm, 200 × 160 mm: 160 mm, 225 × 110 mm: 110 mm, 225 × 125 mm: 125 mm, 225 × 140 mm: 140 mm, 225 × 160 mm: 160 mm, 225 × 200 mm: 200 mm, 250 × 110 mm: 110 mm, 250 × 140 mm: 140 mm, 250 × 160 mm: 160 mm, 250 × 200 mm: 200 mm, 250 × 225 mm: 225 mm, 280 × 110 mm: 110 mm, 280 × 140 mm: 140 mm, 280 × 160 mm: 160 mm, 280 × 200 mm: 200 mm, 280 × 225 mm: 225 mm, 280 × 250 mm: 250 mm, 315 × 110 mm: 110 mm, 315 × 160 mm: 160 mm, 315 × 225 mm: 225 mm, 315 × 250 mm: 250 mm, 315 × 280 mm: 280 mm, 355 × 280 mm: 280 mm, 355 × 315 mm: 315 mm, 400 × 280 mm: 280 mm, 400 × 315 mm: 315 mm, 400 × 355 mm: 355 mm
Basınç sınıfı	32 × 20 mm: PN 16, 32 × 25 mm: PN 16, 32 × 50 mm: PN 16, 40 × 20 mm: PN 16, 40 × 25 mm: PN 16, 40 × 32 mm: PN 16, 50 × 20 mm: PN 16, 50 × 25 mm: PN 16, 50 × 32 mm: PN 16, 50 × 40 mm: PN 16, 63 × 25 mm: PN 16, 63 × 32 mm: PN 16, 63 × 40 mm: PN 16, 63 × 50 mm: PN 16, 75 × 32 mm: PN 16, 75 × 40 mm: PN 16, 75 × 50 mm: PN 16, 75 × 63 mm: PN 16, 90 × 32 mm: PN 16, 90 × 40 mm: PN 16, 90 × 50 mm: PN 16, 90 × 63 mm: PN 16, 90 × 75 mm: PN 16, 110 × 32 mm: PN 16, 110 × 40 mm: PN 16, 110 × 50 mm: PN 16, 110 × 63 mm: PN 16, 110 × 75 mm: PN 16, 110 × 90 mm: PN 16, 125 × 63 mm: PN 16, 125 × 75 mm: PN 16, 125 × 90 mm: PN 16, 125 × 110 mm: PN 16, 140 × 63 mm: PN 16, 140 × 75 mm: PN 16, 140 × 90 mm: PN 16, 140 × 110 mm: PN 16, 160 × 63 mm: PN 16, 160 × 75 mm: PN 16, 160 × 90 mm: PN 16, 160 × 110 mm: PN 16, 160 × 125 mm: PN 16, 200 × 75 mm: PN 16, 200 × 90 mm: PN 16, 200 × 110 mm: PN 16, 200 × 125 mm: PN 16, 200 × 140 mm: PN 16, 200 × 160 mm: PN 16, 225 × 110 mm: PN 16, 225 × 125 mm: PN 16, 225 × 140 mm: PN 16, 225 × 160 mm: PN 16, 225 × 200 mm: PN 10, 250 × 110 mm: PN 10, 250 × 140 mm: PN 10, 250 × 160 mm: PN 10, 250 × 200 mm: PN 10, 250 × 225 mm: PN 10, 280 × 110 mm: PN 10, 280 × 140 mm: PN 10, 280 × 160 mm: PN 10, 280 × 200 mm: PN 10, 280 × 225 mm: PN 10, 280 × 250 mm: PN 10, 315 × 110 mm: PN 10, 315 × 160 mm: PN 10, 315 × 225 mm: PN 10, 315 × 250 mm: PN 10, 315 × 280 mm: PN 10, 355 × 280 mm: PN 10, 355 × 315 mm: PN 10, 400 × 280 mm: PN 10, 400 × 315 mm: PN 10, 400 × 355 mm: PN 10
Birim ağırlık	32 × 20 mm: 0,08 kg, 32 × 25 mm: 0,08 kg, 32 × 50 mm: 0,11 kg, 40 × 20 mm: 0,13 kg, 40 × 25 mm: 0,13 kg, 40 × 32 mm: 0,13 kg, 50 × 20 mm: 0,14 kg, 50 × 25 mm: 0,14 kg, 50 × 32 mm: 0,14 kg, 50 × 40 mm: 0,14 kg, 63 × 25 mm: 0,24 kg, 63 × 32 mm: 0,24 kg, 63 × 40 mm: 0,25 kg, 63 × 50 mm: 0,29 kg, 75 × 63 mm: 0,45 kg, 90 × 63 mm: 0,64 kg, 90 × 75 mm: 0,66 kg, 110 × 63 mm: 0,75 kg, 110 × 75 mm: 0,93 kg, 110 × 90 mm: 0,98 kg, 125 × 63 mm: 1,26 kg, 125 × 75 mm: 1,71 kg, 125 × 90 mm: 1,58 kg, 125 × 110 mm: 1,59 kg, 140 × 63 mm: 2,53 kg, 140 × 75 mm: 2,54 kg, 140 × 90 mm: 2,53 kg, 140 × 110 mm: 2,27 kg, 160 × 63 mm: 2,69 kg, 160 × 75 mm: 2,70 kg, 160 × 90 mm: 2,69 kg, 160 × 110 mm: 2,43 kg, 160 × 125 mm: 4,15 kg, 200 × 75 mm: 4,30 kg, 200 × 90 mm: 4,29 kg, 200 × 110 mm: 4,03 kg, 200 × 125 mm: 5,25 kg, 200 × 140 mm: 4,96 kg, 200 × 160 mm: 4,40 kg, 225 × 110 mm: 4,32 kg, 225 × 125 mm: 5,43 kg, 225 × 140 mm: 5,14 kg, 225 × 160 mm: 4,58 kg, 225 × 200 mm: 4,80 kg, 250 × 110 mm: 7,75 kg, 250 × 140 mm: 7,85 kg, 250 × 160 mm: 7,95 kg, 250 × 200 mm: 8,15 kg, 250 × 225 mm: 10,56 kg, 315 × 110 mm: 14,2 kg, 315 × 160 mm: 13,5 kg, 315 × 225 mm: 14,1 kg, 315 × 250 mm: 22,3 kg, 315 × 280 mm: 19,9 kg, 355 × 280 mm: 33,5 kg, 355 × 315 mm: 30,1 kg, 400 × 280 mm: 46,5 kg, 400 × 315 mm: 43,0 kg, 400 × 355 mm: 36,6 kg
Koli içi adet	32 × 20 mm: 50 adet, 32 × 25 mm: 100 adet, 32 × 50 mm: 80 adet, 40 × 20 mm: 48 adet, 40 × 25 mm: 48 adet, 40 × 32 mm: 48 adet, 50 × 20 mm: 75 adet, 50 × 25 mm: 75 adet, 50 × 32 mm: 75 adet, 50 × 40 mm: 50 adet, 63 × 25 mm: 40 adet, 63 × 32 mm: 30 adet, 63 × 40 mm: 30 adet, 63 × 50 mm: 30 adet, 75 × 32 mm: 30 adet, 75 × 40 mm: 30 adet, 75 × 50 mm: 30 adet, 75 × 63 mm: 30 adet, 90 × 32 mm: 35 adet, 90 × 40 mm: 35 adet, 90 × 50 mm: 35 adet, 90 × 63 mm: 35 adet, 90 × 75 mm: 25 adet, 110 × 32 mm: 22 adet, 110 × 40 mm: 22 adet, 110 × 50 mm: 22 adet, 110 × 63 mm: 22 adet, 110 × 75 mm: 10 adet, 110 × 90 mm: 11 adet, 125 × 63 mm: 10 adet, 125 × 75 mm: 10 adet, 125 × 90 mm: 8 adet, 125 × 110 mm: 8 adet, 140 × 63 mm: 8 adet, 140 × 75 mm: 6 adet, 140 × 90 mm: 6 adet, 140 × 110 mm: 6 adet, 160 × 63 mm: 5 adet, 160 × 75 mm: 5 adet, 160 × 90 mm: 5 adet, 160 × 110 mm: 5 adet, 160 × 125 mm: 5 adet, 200 × 75 mm: 2 adet, 200 × 90 mm: 2 adet, 200 × 110 mm: 2 adet, 200 × 125 mm: 2 adet, 200 × 140 mm: 2 adet, 200 × 160 mm: 2 adet, 225 × 110 mm: 2 adet, 225 × 125 mm: 2 adet, 225 × 140 mm: 2 adet, 225 × 160 mm: 2 adet, 225 × 200 mm: 2 adet, 250 × 110 mm: 1 adet, 250 × 140 mm: 1 adet, 250 × 160 mm: 1 adet, 250 × 200 mm: 1 adet, 250 × 225 mm: 1 adet, 280 × 110 mm: 1 adet, 280 × 140 mm: 1 adet, 280 × 160 mm: 1 adet, 280 × 200 mm: 1 adet, 280 × 225 mm: 1 adet, 280 × 250 mm: 1 adet, 315 × 110 mm: 1 adet, 315 × 160 mm: 1 adet, 315 × 225 mm: 1 adet, 315 × 250 mm: 1 adet, 315 × 280 mm: 1 adet, 355 × 280 mm: 1 adet, 355 × 315 mm: 1 adet, 400 × 280 mm: 1 adet, 400 × 315 mm: 1 adet, 400 × 355 mm: 1 adet
DN1	32 × 20 mm: 25 mm, 32 × 25 mm: 25 mm, 40 × 20 mm: 32 mm, 40 × 25 mm: 32 mm, 40 × 32 mm: 32 mm, 50 × 20 mm: 40 mm, 50 × 25 mm: 40 mm, 50 × 32 mm: 40 mm, 50 × 40 mm: 40 mm, 63 × 32 mm: 50 mm, 63 × 40 mm: 50 mm, 63 × 50 mm: 50 mm, 75 × 32 mm: 65 mm, 75 × 40 mm: 65 mm, 75 × 50 mm: 65 mm, 75 × 63 mm: 65 mm, 90 × 32 mm: 80 mm, 90 × 40 mm: 80 mm, 90 × 50 mm: 80 mm, 90 × 63 mm: 80 mm, 90 × 75 mm: 80 mm, 110 × 32 mm: 100 mm, 110 × 40 mm: 100 mm, 110 × 50 mm: 100 mm, 110 × 63 mm: 100 mm, 110 × 75 mm: 100 mm, 110 × 90 mm: 100 mm, 125 × 63 mm: 110 mm, 125 × 75 mm: 110 mm, 125 × 90 mm: 110 mm, 125 × 110 mm: 110 mm, 140 × 63 mm: 125 mm, 140 × 75 mm: 125 mm, 140 × 90 mm: 125 mm, 140 × 110 mm: 125 mm, 160 × 63 mm: 150 mm, 160 × 75 mm: 150 mm, 160 × 90 mm: 150 mm, 160 × 110 mm: 150 mm, 160 × 125 mm: 150 mm, 200 × 75 mm: 175 mm, 200 × 90 mm: 175 mm, 200 × 110 mm: 175 mm, 200 × 125 mm: 175 mm, 200 × 140 mm: 175 mm, 200 × 160 mm: 175 mm, 225 × 110 mm: 200 mm, 225 × 125 mm: 200 mm, 225 × 140 mm: 200 mm, 225 × 160 mm: 200 mm, 225 × 200 mm: 200 mm, 250 × 110 mm: 250 mm, 250 × 140 mm: 250 mm, 250 × 160 mm: 250 mm, 250 × 200 mm: 250 mm, 250 × 225 mm: 250 mm, 280 × 140 mm: 250 mm, 280 × 160 mm: 250 mm, 280 × 200 mm: 250 mm, 280 × 225 mm: 250 mm, 280 × 250 mm: 250 mm, 315 × 110 mm: 300 mm, 315 × 160 mm: 300 mm, 315 × 225 mm: 300 mm, 315 × 250 mm: 300 mm, 315 × 280 mm: 300 mm, 355 × 280 mm: 350 mm, 355 × 315 mm: 350 mm, 400 × 280 mm: 400 mm, 400 × 315 mm: 400 mm, 400 × 355 mm: 400 mm
DN2	32 × 20 mm: 15 mm, 32 × 25 mm: 20 mm, 40 × 20 mm: 15 mm, 40 × 25 mm: 20 mm, 40 × 32 mm: 25 mm, 50 × 20 mm: 15 mm, 50 × 25 mm: 20 mm, 50 × 32 mm: 25 mm, 50 × 40 mm: 32 mm, 63 × 32 mm: 25 mm, 63 × 40 mm: 32 mm, 63 × 50 mm: 40 mm, 75 × 32 mm: 25 mm, 75 × 40 mm: 32 mm, 75 × 50 mm: 40 mm, 75 × 63 mm: 50 mm, 90 × 32 mm: 25 mm, 90 × 40 mm: 32 mm, 90 × 50 mm: 40 mm, 90 × 63 mm: 50 mm, 90 × 75 mm: 65 mm, 110 × 32 mm: 25 mm, 110 × 40 mm: 32 mm, 110 × 50 mm: 40 mm, 110 × 63 mm: 50 mm, 110 × 75 mm: 65 mm, 110 × 90 mm: 80 mm, 125 × 63 mm: 50 mm, 125 × 75 mm: 65 mm, 125 × 90 mm: 80 mm, 125 × 110 mm: 100 mm, 140 × 63 mm: 50 mm, 140 × 75 mm: 65 mm, 140 × 90 mm: 80 mm, 140 × 110 mm: 100 mm, 160 × 63 mm: 50 mm, 160 × 75 mm: 65 mm, 160 × 90 mm: 80 mm, 160 × 110 mm: 100 mm, 160 × 125 mm: 110 mm, 200 × 75 mm: 65 mm, 200 × 90 mm: 80 mm, 200 × 110 mm: 100 mm, 200 × 125 mm: 110 mm, 200 × 140 mm: 125 mm, 200 × 160 mm: 150 mm, 225 × 110 mm: 100 mm, 225 × 125 mm: 110 mm, 225 × 140 mm: 125 mm, 225 × 160 mm: 150 mm, 225 × 200 mm: 175 mm, 250 × 110 mm: 100 mm, 250 × 140 mm: 125 mm, 250 × 160 mm: 150 mm, 250 × 200 mm: 175 mm, 250 × 225 mm: 200 mm, 280 × 140 mm: 125 mm, 280 × 160 mm: 150 mm, 280 × 200 mm: 175 mm, 280 × 225 mm: 200 mm, 280 × 250 mm: 250 mm, 315 × 110 mm: 100 mm, 315 × 160 mm: 150 mm, 315 × 225 mm: 200 mm, 315 × 250 mm: 250 mm, 315 × 280 mm: 250 mm, 355 × 280 mm: 250 mm, 355 × 315 mm: 300 mm, 400 × 280 mm: 250 mm, 400 × 315 mm: 300 mm, 400 × 355 mm: 350 mm
L	32 × 20 mm: 22 mm, 32 × 25 mm: 22 mm, 32 × 50 mm: 22 mm, 40 × 20 mm: 26 mm, 40 × 25 mm: 26 mm, 40 × 32 mm: 26 mm, 50 × 20 mm: 31 mm, 50 × 25 mm: 31 mm, 50 × 32 mm: 31 mm, 50 × 40 mm: 31 mm, 63 × 25 mm: 38 mm, 63 × 32 mm: 38 mm, 63 × 40 mm: 38 mm, 63 × 50 mm: 38 mm, 75 × 32 mm: 43,5 mm, 75 × 40 mm: 43,5 mm, 75 × 50 mm: 43,5 mm, 75 × 63 mm: 43,5 mm, 90 × 32 mm: 51 mm, 90 × 40 mm: 51 mm, 90 × 50 mm: 51 mm, 90 × 63 mm: 51 mm, 90 × 75 mm: 51 mm, 110 × 32 mm: 61 mm, 110 × 40 mm: 61 mm, 110 × 50 mm: 61 mm, 110 × 63 mm: 61 mm, 110 × 75 mm: 61 mm, 110 × 90 mm: 61 mm, 125 × 63 mm: 68,5 mm, 125 × 75 mm: 68,5 mm, 125 × 90 mm: 68,5 mm, 125 × 110 mm: 68,5 mm, 140 × 63 mm: 76 mm, 140 × 75 mm: 76 mm, 140 × 90 mm: 76 mm, 140 × 110 mm: 76 mm, 160 × 63 mm: 86 mm, 160 × 75 mm: 86 mm, 160 × 90 mm: 86 mm, 160 × 110 mm: 86 mm, 160 × 125 mm: 86 mm, 200 × 75 mm: 106 mm, 200 × 90 mm: 106 mm, 200 × 110 mm: 106 mm, 200 × 125 mm: 106 mm, 200 × 140 mm: 106 mm, 200 × 160 mm: 106 mm, 225 × 110 mm: 118,5 mm, 225 × 125 mm: 118,5 mm, 225 × 140 mm: 118,5 mm, 225 × 160 mm: 118,5 mm, 225 × 200 mm: 118,5 mm, 250 × 110 mm: 131 mm, 250 × 140 mm: 131 mm, 250 × 160 mm: 131 mm, 250 × 200 mm: 131 mm, 250 × 225 mm: 131 mm, 280 × 110 mm: 146 mm, 280 × 140 mm: 146 mm, 280 × 160 mm: 146 mm, 280 × 200 mm: 146 mm, 280 × 225 mm: 146 mm, 280 × 250 mm: 146 mm, 315 × 110 mm: 146 mm, 315 × 160 mm: 163,5 mm, 315 × 225 mm: 163,5 mm, 315 × 250 mm: 163,5 mm, 315 × 280 mm: 163,5 mm, 355 × 280 mm: 163,5 mm, 355 × 315 mm: 183,5 mm, 400 × 280 mm: 183,5 mm, 400 × 315 mm: 206 mm, 400 × 355 mm: 206 mm
L1	32 × 20 mm: 16 mm, 32 × 25 mm: 16 mm, 32 × 50 mm: 16 mm, 40 × 20 mm: 16 mm, 40 × 25 mm: 18,5 mm, 40 × 32 mm: 22 mm, 50 × 20 mm: 16 mm, 50 × 25 mm: 18,5 mm, 50 × 32 mm: 18,5 mm, 50 × 40 mm: 22 mm, 63 × 25 mm: 26 mm, 63 × 32 mm: 18,5 mm, 63 × 40 mm: 22 mm, 63 × 50 mm: 26 mm, 75 × 32 mm: 22 mm, 75 × 40 mm: 26 mm, 75 × 50 mm: 31 mm, 75 × 63 mm: 31 mm, 90 × 32 mm: 22 mm, 90 × 40 mm: 26 mm, 90 × 50 mm: 31 mm, 90 × 63 mm: 38 mm, 90 × 75 mm: 38 mm, 110 × 32 mm: 22 mm, 110 × 40 mm: 26 mm, 110 × 50 mm: 31 mm, 110 × 63 mm: 43,5 mm, 110 × 75 mm: 38 mm, 110 × 90 mm: 43,5 mm, 125 × 63 mm: 51 mm, 125 × 75 mm: 38 mm, 125 × 90 mm: 43,5 mm, 125 × 110 mm: 51 mm, 140 × 63 mm: 61 mm, 140 × 75 mm: 38 mm, 140 × 90 mm: 43,5 mm, 140 × 110 mm: 51 mm, 160 × 63 mm: 61 mm, 160 × 75 mm: 38 mm, 160 × 90 mm: 43,5 mm, 160 × 110 mm: 51 mm, 160 × 125 mm: 61 mm, 200 × 75 mm: 68,5 mm, 200 × 90 mm: 43,5 mm, 200 × 110 mm: 51 mm, 200 × 125 mm: 61 mm, 200 × 140 mm: 68,5 mm, 200 × 160 mm: 76 mm, 225 × 110 mm: 86 mm, 225 × 125 mm: 61 mm, 225 × 140 mm: 68,5 mm, 225 × 160 mm: 76 mm, 225 × 200 mm: 86 mm, 250 × 110 mm: 106 mm, 250 × 140 mm: 61 mm, 250 × 160 mm: 76 mm, 250 × 200 mm: 86 mm, 250 × 225 mm: 106 mm, 280 × 110 mm: 118,5 mm, 280 × 140 mm: 61 mm, 280 × 160 mm: 76 mm, 280 × 200 mm: 86 mm, 280 × 225 mm: 106 mm, 280 × 250 mm: 118,5 mm, 315 × 110 mm: 131 mm, 315 × 160 mm: 61 mm, 315 × 225 mm: 86 mm, 315 × 250 mm: 118,5 mm, 315 × 280 mm: 131 mm, 355 × 280 mm: 146 mm, 355 × 315 mm: 146 mm, 400 × 280 mm: 163,5 mm, 400 × 315 mm: 146 mm, 400 × 355 mm: 163,5 mm
Z1	32 × 20 mm: 17 mm, 32 × 25 mm: 17 mm, 32 × 50 mm: 17 mm, 40 × 20 mm: 23 mm, 40 × 25 mm: 23 mm, 40 × 32 mm: 23 mm, 50 × 20 mm: 28 mm, 50 × 25 mm: 28 mm, 50 × 32 mm: 28 mm, 50 × 40 mm: 28 mm, 63 × 25 mm: 28 mm, 63 × 32 mm: 35 mm, 63 × 40 mm: 35 mm, 63 × 50 mm: 35 mm, 75 × 32 mm: 38,5 mm, 75 × 40 mm: 38,5 mm, 75 × 50 mm: 38,5 mm, 75 × 63 mm: 38,5 mm, 90 × 32 mm: 46 mm, 90 × 40 mm: 46 mm, 90 × 50 mm: 46 mm, 90 × 63 mm: 46 mm, 90 × 75 mm: 46 mm, 110 × 32 mm: 56 mm, 110 × 40 mm: 56 mm, 110 × 50 mm: 56 mm, 110 × 63 mm: 56 mm, 110 × 75 mm: 56 mm, 110 × 90 mm: 56 mm, 125 × 63 mm: 64 mm, 125 × 75 mm: 64 mm, 125 × 90 mm: 64 mm, 125 × 110 mm: 64 mm, 140 × 63 mm: 72 mm, 140 × 75 mm: 72 mm, 140 × 90 mm: 72 mm, 140 × 110 mm: 72 mm, 160 × 63 mm: 81 mm, 160 × 75 mm: 81 mm, 160 × 90 mm: 81 mm, 160 × 110 mm: 81 mm, 160 × 125 mm: 81 mm, 200 × 75 mm: 107 mm, 200 × 90 mm: 107 mm, 200 × 110 mm: 107 mm, 200 × 125 mm: 107 mm, 200 × 140 mm: 107 mm, 200 × 160 mm: 107 mm, 225 × 110 mm: 120 mm, 225 × 125 mm: 120 mm, 225 × 140 mm: 120 mm, 225 × 160 mm: 120 mm, 225 × 200 mm: 120 mm, 250 × 110 mm: 132 mm, 250 × 140 mm: 132 mm, 250 × 160 mm: 132 mm, 250 × 200 mm: 132 mm, 250 × 225 mm: 132 mm, 280 × 110 mm: 146 mm, 280 × 140 mm: 146 mm, 280 × 160 mm: 146 mm, 280 × 200 mm: 146 mm, 280 × 225 mm: 146 mm, 280 × 250 mm: 146 mm, 315 × 110 mm: 146 mm, 315 × 160 mm: 168 mm, 315 × 225 mm: 168 mm, 315 × 250 mm: 168 mm, 315 × 280 mm: 168 mm, 355 × 280 mm: 168 mm, 355 × 315 mm: 196 mm, 400 × 280 mm: 196 mm, 400 × 315 mm: 214 mm, 400 × 355 mm: 214 mm
Z	32 × 20 mm: 14 mm, 32 × 25 mm: 14 mm, 32 × 50 mm: 14 mm, 40 × 20 mm: 17 mm, 40 × 25 mm: 17 mm, 40 × 32 mm: 17 mm, 50 × 20 mm: 17 mm, 50 × 25 mm: 17 mm, 50 × 32 mm: 17 mm, 50 × 40 mm: 17 mm, 63 × 25 mm: 23 mm, 63 × 32 mm: 23 mm, 63 × 40 mm: 23 mm, 63 × 50 mm: 23 mm, 75 × 32 mm: 17 mm, 75 × 40 mm: 23 mm, 75 × 50 mm: 28 mm, 75 × 63 mm: 28 mm, 90 × 32 mm: 17 mm, 90 × 40 mm: 23 mm, 90 × 50 mm: 28 mm, 90 × 63 mm: 35 mm, 90 × 75 mm: 35 mm, 110 × 32 mm: 17 mm, 110 × 40 mm: 23 mm, 110 × 50 mm: 28 mm, 110 × 63 mm: 40 mm, 110 × 75 mm: 35 mm, 110 × 90 mm: 40 mm, 125 × 63 mm: 46 mm, 125 × 75 mm: 35 mm, 125 × 90 mm: 40 mm, 125 × 110 mm: 46 mm, 140 × 63 mm: 56 mm, 140 × 75 mm: 35 mm, 140 × 90 mm: 40 mm, 140 × 110 mm: 46 mm, 160 × 63 mm: 56 mm, 160 × 75 mm: 35 mm, 160 × 90 mm: 40 mm, 160 × 110 mm: 46 mm, 160 × 125 mm: 56 mm, 200 × 75 mm: 69 mm, 200 × 90 mm: 40 mm, 200 × 110 mm: 46 mm, 200 × 125 mm: 82 mm, 200 × 140 mm: 82 mm, 200 × 160 mm: 82 mm, 225 × 110 mm: 82 mm, 225 × 125 mm: 56 mm, 225 × 140 mm: 69 mm, 225 × 160 mm: 72 mm, 225 × 200 mm: 82 mm, 250 × 110 mm: 107 mm, 250 × 140 mm: 132 mm, 250 × 160 mm: 132 mm, 250 × 200 mm: 132 mm, 250 × 225 mm: 132 mm, 280 × 110 mm: 132 mm, 280 × 140 mm: 146 mm, 280 × 160 mm: 146 mm, 280 × 200 mm: 146 mm, 280 × 225 mm: 146 mm, 280 × 250 mm: 146 mm, 315 × 110 mm: 146 mm, 315 × 160 mm: 168 mm, 315 × 225 mm: 168 mm, 315 × 250 mm: 168 mm, 315 × 280 mm: 168 mm, 355 × 280 mm: 168 mm, 355 × 315 mm: 152 mm, 400 × 280 mm: 175 mm, 400 × 315 mm: 175 mm, 400 × 355 mm: 175 mm
